#include <CArcPacket.h>

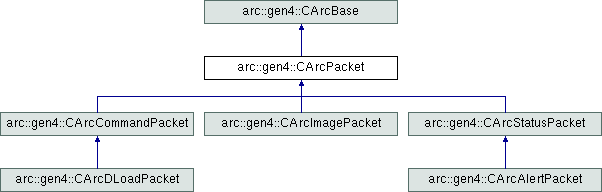

Inheritance diagram for arc::gen4::CArcPacket:

Public Member Functions
virtual	~CArcPacket (void)=default

virtual bool	headerValid (void) const noexcept=0

constexpr std::uint32_t	headerLength (void) const noexcept

constexpr std::uint32_t	headerByteLength (void) const noexcept

std::uint8_t	packetId (void) const

bool	checkPacketId (std::uint32_t uiHeader, std::uint8_t uiPacketId) const noexcept

std::uint8_t	payloadId (void) const

std::uint8_t	payloadLength (void) const

std::uint32_t	payloadByteLength (void) const

std::uint32_t *	payload (void) const noexcept

void	add (const std::uint32_t uiValue)

std::uint32_t	length (void) const noexcept

std::uint32_t	byteLength (void) const noexcept

std::uint32_t	maxByteLength (void) const noexcept

std::uint32_t	maxLength (void) const noexcept

std::uint32_t	at (const std::uint32_t uiIndex) const

std::uint32_t &	operator[] (const std::uint32_t uiIndex)

std::uint8_t *	data (void) const noexcept

virtual const std::string	getName (void) const =0

virtual const std::string	toString (void) const

virtual const std::string	toLogString (void) const

Public Member Functions inherited from arc::gen4::CArcBase
virtual	~CArcBase (void)

Protected Member Functions
	CArcPacket (const std::uint32_t uiSize=MAX_PACKET_SIZE)

void	incrementLength (const std::uint8_t uiIncr=1) noexcept

Protected Member Functions inherited from arc::gen4::CArcBase
	CArcBase (void)=default

	CArcBase (const CArcBase &)=delete

	CArcBase (CArcBase &&)=delete

CArcBase &	operator= (const CArcBase &)=delete

CArcBase &	operator= (CArcBase &&)=delete

Protected Attributes
packetHeader_t *	m_pHeader

std::uint32_t *	m_pPayload

std::unique_ptr< std::uint8_t[]>	m_pData

std::uint32_t	m_uiSize

Static Protected Attributes
static constexpr auto	MAX_PACKET_SIZE = static_cast< std::uint32_t >( 1024 )

Static Protected Attributes inherited from arc::gen4::CArcBase
static const std::string	m_sVersion

Additional Inherited Members
Static Public Member Functions inherited from arc::gen4::CArcBase
static const std::string	version (void)

static void	zeroMemory (void *pDest, std::size_t uiSize)

static void	copyMemory (void pDest, void pSrc, std::size_t uiSize)

template<typename T >
static std::tuple< T , T >	copyAndIncrement (void pDest, void pSrc, const std::size_t uiSize)

template<typename ErrCode > requires std::is_integral_v<ErrCode>
static const std::string	getSystemErrorMessage (ErrCode iErrCode)

static const std::string	getSystemErrorMessage (void)

static std::uint32_t	getSystemError (void) noexcept

static pStringList_t	splitString (const std::string &sString, const char &zDelim=' ')

static std::string	formatString (const char *pszFmt,...)

static const std::filesystem::path	incrementFileName (const std::filesystem::path &tFilePath="", const std::int32_t iStartValue=-1)

static std::string	convertWideToAnsi (const wchar_t wzString[]) noexcept

static std::string	convertWideToAnsi (const std::wstring &wsString)

static std::wstring	convertAnsiToWide (const char *pszString)

static std::string	cmdToString (const std::uint32_t uiCmd)

template<typename T >
static std::string	iterToString (T begin, T end, const char zSeperator=' ')

static std::string	setDots (const std::string &sText, const std::size_t uiMaxLength, const char szDot='.')

static std::string	trim (const std::string &sText) noexcept

static const std::chrono::time_point< std::chrono::high_resolution_clock >	startCodeTime (void) noexcept

template<typename T >
static constexpr auto	endCodeTime (const std::chrono::time_point< std::chrono::high_resolution_clock > tStartTimePoint) noexcept

Detailed Description

ARC GenIV packet class. All ARC GenIV images are sent to the host computer using this packets type.

ARC GenIV base packet class. All ARC GenIV packets derive from this class.

Definition at line 49 of file CArcPacket.h.

Constructor & Destructor Documentation

◆ ~CArcPacket()

virtual arc::gen4::CArcPacket::~CArcPacket ( void )

virtualdefault

Destructor

◆ CArcPacket()

arc::gen4::CArcPacket::CArcPacket ( const std::uint32_t uiSize = MAX_PACKET_SIZE )

protected

Constructor

Member Function Documentation

◆ headerValid()

virtual bool arc::gen4::CArcPacket::headerValid ( void ) const

pure virtualnoexcept

Returns whether or not the header contains valid values.

Returns: Returns true if the header contains valid values.

Implemented in arc::gen4::CArcAlertPacket, arc::gen4::CArcCommandPacket, arc::gen4::CArcDLoadPacket, arc::gen4::CArcImagePacket, and arc::gen4::CArcStatusPacket.

◆ headerLength()

constexpr std::uint32_t arc::gen4::CArcPacket::headerLength ( void ) const

inlineconstexprnoexcept

Returns the packet header maxLength in dwords ( 32-bits ).

Returns: The packet header maxLength in dwords ( 32-bits ).

Definition at line 65 of file CArcPacket.h.

◆ headerByteLength()

constexpr std::uint32_t arc::gen4::CArcPacket::headerByteLength ( void ) const

inlineconstexprnoexcept

Returns the packet header maxLength in bytes.

Returns: The packet header maxLength in bytes.

Definition at line 73 of file CArcPacket.h.

◆ packetId()

std::uint8_t arc::gen4::CArcPacket::packetId ( void ) const

Returns the packet id.

Returns: The packet id.

Exceptions

std::runtime_error

◆ checkPacketId()

bool arc::gen4::CArcPacket::checkPacketId	(	std::uint32_t	uiHeader,
		std::uint8_t	uiPacketId
	)		const

noexcept

Checks if the specified packet ID exists in the specified partial header.

Parameters

uiHeader	- The partial (first) packet header.
uiPacketId	- The packet ID to check for.

Returns: true if the packet ID is found in the header; false otherwise.

◆ payloadId()

std::uint8_t arc::gen4::CArcPacket::payloadId ( void ) const

Returns the payload id.

Returns: The payload id.

Exceptions

std::runtime_error

◆ payloadLength()

std::uint8_t arc::gen4::CArcPacket::payloadLength ( void ) const

Returns the payload dword count.

Returns: The payload dword count.

Exceptions

std::runtime_error

◆ payloadByteLength()

std::uint32_t arc::gen4::CArcPacket::payloadByteLength ( void ) const

Returns the payload byte count.

Returns: The payload byte count.

Exceptions

std::runtime_error

◆ payload()

std::uint32_t * arc::gen4::CArcPacket::payload ( void ) const

noexcept

Returns a pointer to the start of the payload.

Returns: A pointer to the start of the packet payload

◆ add()

void arc::gen4::CArcPacket::add ( const std::uint32_t uiValue )

Add a value to the end of the payload.

Parameters

uiValue - The value to append to the end of the payload.

Exceptions

std::out_of_range exception if index is beyond max length of packet.

◆ length()

std::uint32_t arc::gen4::CArcPacket::length ( void ) const

noexcept

Returns the number of dwords ( 32-bit values ) that define the current packet ( header plus payload length ).

Returns: The number of 32-bit dwords in the packet.

◆ byteLength()

std::uint32_t arc::gen4::CArcPacket::byteLength ( void ) const

noexcept

Returns the number of bytes that define the current packet ( header plus payload length ).

Returns: The number of valid bytes in the packet.

◆ maxByteLength()

std::uint32_t arc::gen4::CArcPacket::maxByteLength ( void ) const

noexcept

Returns the maximum number of bytes that the packet may contain.

Returns: The maximum number of bytes in the packet.

◆ maxLength()

std::uint32_t arc::gen4::CArcPacket::maxLength ( void ) const

noexcept

Returns the maximum number of dwords ( 32-bit values ) that the packet may contain.

Returns: The maximum number of 32-bit words in the packet.

◆ at()

std::uint32_t arc::gen4::CArcPacket::at ( const std::uint32_t uiIndex ) const

Returns the 32-bit packet data value at the specified index.

Parameters

uiIndex - The index of the value to readRunnable.

Exceptions

std::out_of_range	exception if index exceeds packet size.
std::runtime_error

◆ operator[]()

std::uint32_t & arc::gen4::CArcPacket::operator[] ( const std::uint32_t uiIndex )

Access the specified 32-bit value in the packet.

Parameters

uiIndex - The index of the value to access. Starts at beginning of packet (i.e. header ).

Returns: A reference to the value at the specified index.

Exceptions

std::out_of_range	exception if index exceeds packet size.
std::runtime_error

◆ data()

std::uint8_t * arc::gen4::CArcPacket::data ( void ) const

noexcept

Returns a pointer to the underlying packet data storage.

Returns: A pointer to the underlying packet data storage.

◆ getName()

virtual const std::string arc::gen4::CArcPacket::getName ( void ) const

pure virtual

Returns the packet name.

Returns: The packet name.

Exceptions

Any	exception thrown by std::string

Implemented in arc::gen4::CArcAlertPacket, arc::gen4::CArcCommandPacket, arc::gen4::CArcDLoadPacket, arc::gen4::CArcImagePacket, and arc::gen4::CArcStatusPacket.

◆ toString()

virtual const std::string arc::gen4::CArcPacket::toString ( void ) const

virtual

Returns the packet as a formatted string. The format, which may change at any time, is not documented here.

Returns: The packet as a formatted string.

Exceptions

std::ios_base::failure

◆ toLogString()

virtual const std::string arc::gen4::CArcPacket::toLogString ( void ) const

virtual

Returns the packet as a formatted string for the log class. The format, which may change at any time, is not documented here.

Returns: The packet as a formatted string.

Exceptions

std::ios_base::failure

◆ incrementLength()

void arc::gen4::CArcPacket::incrementLength ( const std::uint8_t uiIncr = 1 )

protectednoexcept

Increment the header payload maxLength by the specified amount.

Parameters

uiIncr - The number of dwords ( 32-bits ) by which to increment the header payload maxLength field.

Member Data Documentation

◆ MAX_PACKET_SIZE

constexpr auto arc::gen4::CArcPacket::MAX_PACKET_SIZE = static_cast< std::uint32_t >( 1024 )

staticconstexprprotected

Default maximum packet size ( in bytes ) IMPORTANT NOTE: The header cannot support more than 255 dwords

Definition at line 194 of file CArcPacket.h.

◆ m_pHeader

packetHeader_t* arc::gen4::CArcPacket::m_pHeader

protected

Packet header pointer

Definition at line 197 of file CArcPacket.h.

◆ m_pPayload

std::uint32_t* arc::gen4::CArcPacket::m_pPayload

protected

Packet payload pointer

Definition at line 200 of file CArcPacket.h.

◆ m_pData

std::unique_ptr<std::uint8_t[]> arc::gen4::CArcPacket::m_pData

protected

Packet data

Definition at line 203 of file CArcPacket.h.

◆ m_uiSize

std::uint32_t arc::gen4::CArcPacket::m_uiSize

protected

Packet data byte size

Definition at line 206 of file CArcPacket.h.
