#include <CArcBase.h>

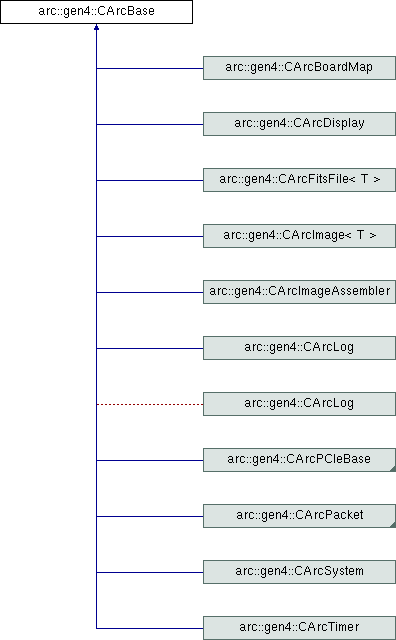

Inheritance diagram for arc::gen4::CArcBase:

Public Member Functions
virtual	~CArcBase (void)

Static Public Member Functions
static const std::string	version (void)

static void	zeroMemory (void *pDest, std::size_t uiSize)

static void	copyMemory (void pDest, void pSrc, std::size_t uiSize)

template<typename T >
static std::tuple< T , T >	copyAndIncrement (void pDest, void pSrc, const std::size_t uiSize)

template<typename ErrCode > requires std::is_integral_v<ErrCode>
static const std::string	getSystemErrorMessage (ErrCode iErrCode)

static const std::string	getSystemErrorMessage (void)

static std::uint32_t	getSystemError (void) noexcept

static pStringList_t	splitString (const std::string &sString, const char &zDelim=' ')

static std::string	formatString (const char *pszFmt,...)

static const std::filesystem::path	incrementFileName (const std::filesystem::path &tFilePath="", const std::int32_t iStartValue=-1)

static std::filesystem::path	getFileName (const std::string &sFilter="Gen IV Microcontroller binary file\0.bin\0All\0.*\0"s) noexcept

static std::string	convertWideToAnsi (const wchar_t wzString[]) noexcept

static std::string	convertWideToAnsi (const std::wstring &wsString)

static std::wstring	convertAnsiToWide (const char *pszString)

static std::string	cmdToString (const std::uint32_t uiCmd)

static std::string	uintToString (const std::uint32_t uiValue) noexcept

template<typename T >
static std::string	iterToString (T begin, T end, const char zSeperator=' ')

static std::unique_ptr< std::uint8_t[]>	readFileBytes (const std::filesystem::path &tFilePath, std::uint32_t &uiFileLength)

static std::string	setDots (std::string_view svText, const std::size_t uiMaxLength, const char szDot='.')

static std::string	trim (const std::string &sText) noexcept

static std::size_t	replaceAll (std::string &sText, std::string_view svWhat, std::string_view svWith)

static float	uintToFloat (const std::uint32_t uiValue)

static const std::chrono::time_point< std::chrono::high_resolution_clock >	startCodeTime (void) noexcept

template<typename T >
static constexpr auto	endCodeTime (const std::chrono::time_point< std::chrono::high_resolution_clock > tStartTimePoint) noexcept

Protected Member Functions
	CArcBase (void)=default

	CArcBase (const CArcBase &)=delete

	CArcBase (CArcBase &&)=delete

CArcBase &	operator= (const CArcBase &)=delete

CArcBase &	operator= (CArcBase &&)=delete

Static Protected Attributes
static const std::string	m_sVersion

Detailed Description

Standard ARC device base class that makes a set of useful methods available to all subclasses. Class methods include throwing formatted exceptions, ascii to string command conversion, error uiCode formatting and character conversion ( unicode to ascii and vice versa ).

Definition at line 233 of file CArcBase.h.

Constructor & Destructor Documentation

◆ ~CArcBase()

virtual arc::gen4::CArcBase::~CArcBase ( void )

virtual

Destructor

◆ CArcBase() [1/3]

arc::gen4::CArcBase::CArcBase ( void )

protecteddefault

Default constructor

◆ CArcBase() [2/3]

arc::gen4::CArcBase::CArcBase ( const CArcBase & )

protecteddelete

Delete copy constructor

◆ CArcBase() [3/3]

arc::gen4::CArcBase::CArcBase ( CArcBase && )

protecteddelete

Delete move constructor

Member Function Documentation

◆ version()

static const std::string arc::gen4::CArcBase::version ( void )

static

Returns a textual representation of the library version and compile date and time.

Returns: A string representation of the library details.

◆ zeroMemory()

static void arc::gen4::CArcBase::zeroMemory	(	void *	pDest,
		std::size_t	uiSize
	)

static

Zero out the specified buffer.

Parameters

pDest	- Pointer to the buffer to zero.
uiSize	- The size of the buffer ( in bytes ).

Exceptions

std::invalid_argument if arguments are invalid.

◆ copyMemory()

static void arc::gen4::CArcBase::copyMemory	(	void *	pDest,
		void *	pSrc,
		std::size_t	uiSize
	)

static

Copies the source buffer into the destination buffer.

Parameters

pDest	- Pointer to the destination buffer to copy into.
pSrc	- Pointer to the source buffer to copy out of.
uiSize	- The size of the buffers ( in bytes ).

Exceptions

std::invalid_argument if arguments are invalid.

◆ copyAndIncrement()

template<typename T >

static std::tuple< T , T > arc::gen4::CArcBase::copyAndIncrement	(	void *	pDest,
		void *	pSrc,
		const std::size_t	uiSize
	)

inlinestatic

Copies the source buffer into the destination buffer. The pointers are incremented.

Parameters

pDest	- Pointer to the destination buffer to copy into.
pSrc	- Pointer to the source buffer to copy out of.
uiSize	- The size of the buffers ( in bytes ).

Exceptions

std::invalid_argument if arguments are invalid.

Definition at line 266 of file CArcBase.h.

◆ getSystemErrorMessage() [1/2]

template<typename ErrCode >
requires std::is_integral_v<ErrCode>

static const std::string arc::gen4::CArcBase::getSystemErrorMessage ( ErrCode iErrCode )

inlinestatic

Returns a string that represents the specified system error uiCode.

Parameters

uiCode/iCode - The system specific error uiCode ( GetLastError() on Windows, errno on Linux ).

Returns: A string that represents the error message assoctiated with the specified system error uiCode.

Exceptions

std::ios_base::failure

Definition at line 302 of file CArcBase.h.

◆ getSystemErrorMessage() [2/2]

static const std::string arc::gen4::CArcBase::getSystemErrorMessage ( void )

static

Returns a string that describes the last system error as returned from GetLastError() on Windows and errno on Linux.

Returns: A string that describes the error message assoctiated with the specified system error code.

Exceptions

std::ios_base::failure

◆ getSystemError()

static std::uint32_t arc::gen4::CArcBase::getSystemError ( void )

inlinestaticnoexcept

Returns the current system error code.

Returns: The current system error code (GetLastError() on windows, errno on linux).

Definition at line 377 of file CArcBase.h.

◆ splitString()

static pStringList_t arc::gen4::CArcBase::splitString	(	const std::string &	sString,
		const char &	zDelim = `' '`
	)

static

Splits a string based on the specified deliminator.

Parameters

sString	- The string to split.
zDelim	- The character used to split the string ( default = ' ' ).

Returns: A pointer to a CArcStringList object that contains the string tokens.

Exceptions

std::regex_error

◆ formatString()

static std::string arc::gen4::CArcBase::formatString	(	const char *	pszFmt,
			...
	)

static

Formats a std::string using printf-style formatting. Acceptable format string specifiers:

          Acceptable format string specifiers:
          %u   -> unsigned integer
          %d   -> integer
          %f   -> double
          %l   -> long
          %j   -> unsigned long
          %J   -> unsigned long long
          %s   -> char * string
          %e   -> system message (as returned by errno or GetLastError)
          %b   -> bool
          %x/X -> 32-bit lower/upper case hexadecimal integer.
          %p   -> 64-bit upper case hexadecimal integer ( pointer )

Parameters

pszFmt	- A printf-style format string. See above for specifiers.
...	- Arguments to fill in format string specifiers.

Returns: A string formatted using the specified parameters.

Exceptions

std::ios_base::failure

◆ incrementFileName()

static const std::filesystem::path arc::gen4::CArcBase::incrementFileName	(	const std::filesystem::path &	tFilePath = `""`,
		const std::int32_t	iStartValue = `-1`
	)

static

Modifies the specified filename to contain an increment value string ("_#). The increment value starts at zero by default. To reset the increment value back to zero, pass in the default values. @param tFilePath - The un-modified filename to modify with an increment value (default: "" ).

Parameters

iStartValue - The increment start value or -1 to reset back to zero (default: -1).

Returns: The incremented filename. The original file parameter remains unscathed.

Exceptions

std::runtime_error and any error thrown by the std::filesystem methods ( parent_path, stem, extension, /=, += ).

◆ getFileName()

static std::filesystem::path arc::gen4::CArcBase::getFileName ( const std::string & sFilter = "Gen IV Microcontroller binary file\0*.bin\0All\0*.*\0"s )

staticnoexcept

Windows only - Opens a file selection dialog window sFilter - The dialog file filter string. Default filters for a micro-controller binary file or all files. Format is as follows: "text description 1\0file extension 1\0text description 2\0file extension 2\0" NOTE: Each part, including the end, must end with a \0 character

Returns: The full filename and path that's selected or the empty string if there's no selection or the operating system is not Windows.

◆ convertWideToAnsi() [1/2]

static std::string arc::gen4::CArcBase::convertWideToAnsi ( const wchar_t wzString[] )

staticnoexcept

Converts a unicode character array to an ansi string.

Parameters

wzString - The unicode character array to convert.

Returns: An ansi string version of the unicode array parameter.

◆ convertWideToAnsi() [2/2]

static std::string arc::gen4::CArcBase::convertWideToAnsi ( const std::wstring & wsString )

static

Converts a unicode string to an ansi string.

Parameters

wsString - The unicode string to convert.

Returns: An ansi string version of the unicode string parameter.

Exceptions

std::ios_base::failure

◆ convertAnsiToWide()

static std::wstring arc::gen4::CArcBase::convertAnsiToWide ( const char * pszString )

static

Converts an ansi string to a unicode string.

Parameters

pszString - The ansi string to convert.

Returns: A unicode string version of the ansi string parameter.

Exceptions

std::ios_base::failure

◆ cmdToString()

static std::string arc::gen4::CArcBase::cmdToString ( const std::uint32_t uiCmd )

static

Converts a device or controller ascii command to a string represented by changing each each byte to its ascii letter equivalent. This is useful for logging human readable versions of a command. For example, 0x54444C would be converted to "TDL". If the command fails to be converted, then the hexadecimal value is returned as a string. For example, 0x212223 would be returned as "0x212223" and not "!*#".

Parameters

uiCmd - A device or controller ascii command.

Returns: A string version of the command parameter.

Exceptions

std::ios_base::failure

◆ uintToString()

static std::string arc::gen4::CArcBase::uintToString ( const std::uint32_t uiValue )

staticnoexcept

Converts the specified value to a string where each byte in the integer parameter is converted to its equivalent ascii text character. Only printable characters are converted. All others are ignored and left out of the returned string.

Parameters

uiValue - The value to byte convert to ascii text characters

Returns: The string of converted bytes

◆ iterToString()

template<typename T >

static std::string arc::gen4::CArcBase::iterToString	(	T *	begin,
		T *	end,
		const char	zSeperator = `' '`
	)

inlinestatic

Moves through the specified iterator positions and places each value into a return string that is seperated by the specified zSeperator.

Example: std::initializer_list<std::uint32_t> list = { 1, 2, 3, 4 }; produces the following output: "1 2 3 4 "

Parameters

begin	- Pointer to iterator to the first element.
end	- Pointer to iterator to the last element.
zSeperator	- Seperator character ( default = ' ' ).

Returns: A string containing all iterator elements seperated by the zSeperator parameter.

Exceptions

std::invalid_argument
std::ios_base::failure

Definition at line 499 of file CArcBase.h.

◆ readFileBytes()

static std::unique_ptr< std::uint8_t[]> arc::gen4::CArcBase::readFileBytes	(	const std::filesystem::path &	tFilePath,
		std::uint32_t &	uiFileLength
	)

static

Reads and returns all the bytes from a binary file.

Parameters

tFilePath	- The binary file eto read.
uiFileLength	- On return contains the byte length of the file.

Returns: A std::unique_ptr containing the byte data read from the file.

Exceptions

std::runtime_error
std::invalid_argument
std::length_error

◆ setDots()

static std::string arc::gen4::CArcBase::setDots	(	std::string_view	svText,
		const std::size_t	uiMaxLength,
		const char	szDot = `'.'`
	)

static

Appends dots to the end of the specified string to show a connection to a component.

Parameters

svText	- The text to append the dots too.
uiMaxLength	- The maximum length of the returned string.
szDot	- The dot character (default = '.').

Returns: A string of length iMaxLength with dots appended.

Exceptions

std::ios_base::failure
std::length_error

◆ trim()

static std::string arc::gen4::CArcBase::trim ( const std::string & sText )

staticnoexcept

Trims the leading and trailing whitespace from the text.

Parameters

sText - The text to trim leading and trailing whitespace from.

Returns: The whitespace trimmed text.

◆ replaceAll()

static std::size_t arc::gen4::CArcBase::replaceAll	(	std::string &	sText,
		std::string_view	svWhat,
		std::string_view	svWith
	)

static

Replaces the specified string with a new value

Parameters

sText	- The text to modify
svWhat	- The text to search for
svWith	- The new text used to replace any found search text values

Returns: The total number of successful string replacements

Exceptions

std::out_of_range
std::length_error

◆ uintToFloat()

static float arc::gen4::CArcBase::uintToFloat ( const std::uint32_t uiValue )

static

Convert an unsigned integer value to a floating point. This is used to convert a float value sent by the controller as an unsigned integer back to a float value.

Parameters

uiValue - The unsigned integer version of a float value to convert back to a float

Returns: The floating point value

Exceptions

std::runtime_error

◆ startCodeTime()

static const std::chrono::time_point< std::chrono::high_resolution_clock > arc::gen4::CArcBase::startCodeTime ( void )

staticnoexcept

Reads the current time point using the std::high_resolution_clock for timing a piece of code. This is the start time to be called first.

Returns: The current time point

◆ endCodeTime()

template<typename T >

static constexpr auto arc::gen4::CArcBase::endCodeTime ( const std::chrono::time_point< std::chrono::high_resolution_clock > tStartTimePoint )

inlinestaticconstexprnoexcept

Reads the current time point using the std::high_resolution_clock and subtracts the specified start time point for timing a piece of code. This is the end time to be called second.

Parameters

tStartTimePoint - The start time point returned by startCodeTime() method.

Returns: The time difference in the specified duration.

Definition at line 584 of file CArcBase.h.

◆ operator=() [1/2]

CArcBase & arc::gen4::CArcBase::operator= ( const CArcBase & )

protecteddelete

Delete copy assignment constructor

◆ operator=() [2/2]

CArcBase & arc::gen4::CArcBase::operator= ( CArcBase && )

protecteddelete

Delete move assignment constructor

Member Data Documentation

◆ m_sVersion

const std::string arc::gen4::CArcBase::m_sVersion

staticprotected

version() text holder

Definition at line 611 of file CArcBase.h.

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~CArcBase()

◆ CArcBase() [1/3]

◆ CArcBase() [2/3]

◆ CArcBase() [3/3]

Member Function Documentation

◆ version()

◆ zeroMemory()

◆ copyMemory()

◆ copyAndIncrement()

◆ getSystemErrorMessage() [1/2]

◆ getSystemErrorMessage() [2/2]

◆ getSystemError()

◆ splitString()

◆ formatString()

◆ incrementFileName()

◆ getFileName()

◆ convertWideToAnsi() [1/2]

◆ convertWideToAnsi() [2/2]

◆ convertAnsiToWide()

◆ cmdToString()

◆ uintToString()

◆ iterToString()

◆ readFileBytes()

◆ setDots()

◆ trim()

◆ replaceAll()

◆ uintToFloat()

◆ startCodeTime()

◆ endCodeTime()

◆ operator=() [1/2]

◆ operator=() [2/2]

Member Data Documentation

◆ m_sVersion
